SF系列連接器的外殼配合尺寸為8mm,9mm,10mm,12mm,接觸對數(shù)量有2,3,4,5,6,7芯六種，可直接安裝在面板上使用，連接器外殼為黃銅，外形小巧美觀，連接形式為推入式鋼球鎖定，插拔迅速方便，本產(chǎn)品適用于各種儀表儀器，電子設備等交直流電路的連接。
SF series connector shell with the size of 8mm,9mm,10mm,12mm,the number of contacts have 2,3,4,5,6,7pins,can be directly installed on the panel used for the brass connector shell,a small beautiful appearance to contact the form of push-in locking ball,plug quickly and easily,this product is applicable to a variety of instrments and meters,electronic devices,such as AC-DC link circuit.

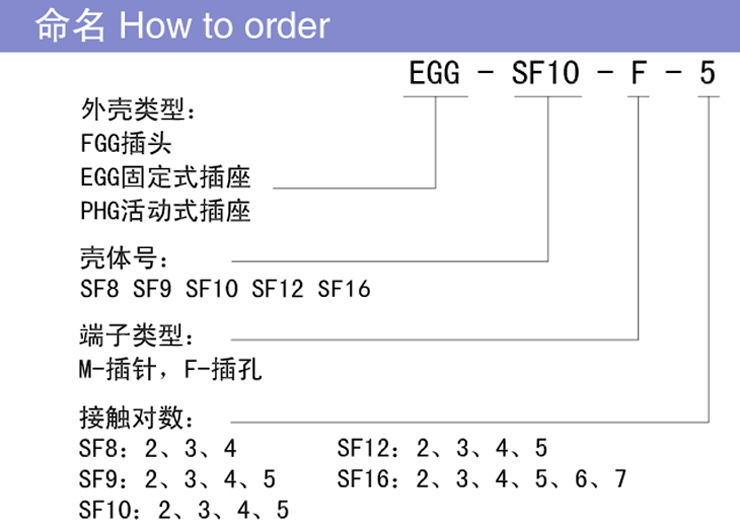

| EGG-SF8-M-2 | EGG-SF9-M-2 | EGG-SF10-M-2 | EGG-SF12-M-2 |
| EGG-SF8-M-3 | EGG-SF9-M-3 | EGG-SF10-M-3 | EGG-SF12-M-3 |
| EGG-SF8-M-4 | EGG-SF9-M-4 | EGG-SF10-M-4 | EGG-SF12-M-4 |
| EGG-SF9-M-5 | EGG-SF10-M-5 | EGG-SF12-M-5 | |
| EGG-SF8-F-2 | EGG-SF12-M-6 | ||
| EGG-SF8-F-3 | EGG-SF9-F-2 | EGG-SF10-F-2 | EGG-SF12-M-7 |
| EGG-SF8-F-4 | EGG-SF9-F-3 | EGG-SF10-F-3 | |
| EGG-SF9-F-4 | EGG-SF10-F-4 | EGG-SF12-F-2 | |
| FGG-SF8-M-2 | EGG-SF9-F-5 | EGG-SF10-F-5 | EGG-SF12-F-3 |
| FGG-SF8-M-3 | EGG-SF12-F-4 | ||
| FGG-SF8-M-4 | FGG-SF9-M-2 | FGG-SF10-M-2 | EGG-SF12-F-5 |
| FGG-SF9-M-3 | FGG-SF10-M-3 | EGG-SF12-F-6 | |
| FGG-SF8-F-2 | FGG-SF9-M-4 | FGG-SF10-M-4 | EGG-SF12-F-7 |
| FGG-SF8-F-3 | FGG-SF9-M-5 | FGG-SF10-M-5 | |
| FGG-SF8-F-4 | FGG-SF12-M-2 | ||
| FGG-SF9-F-2 | FGG-SF10-F-2 | FGG-SF12-M-3 | |
| PHG-SF8-M-2 | FGG-SF9-F-3 | FGG-SF10-F-3 | FGG-SF12-M-4 |
| PHG-SF8-M-3 | FGG-SF9-F-4 | FGG-SF10-F-4 | FGG-SF12-M-5 |
| PHG-SF8-M-4 | FGG-SF9-F-5 | FGG-SF10-F-5 | FGG-SF12-M-6 |
| FGG-SF12-M-7 | |||
| PHG-SF8-F-2 | PHG-SF9-M-2 | PHG-SF10-M-2 | |
| PHG-SF8-F-3 | PHG-SF9-M-3 | PHG-SF10-M-3 | FGG-SF12-F-2 |
| PHG-SF8-F-4 | PHG-SF9-M-4 | PHG-SF10-M-4 | FGG-SF12-F-3 |
| PHG-SF9-M-5 | PHG-SF10-M-5 | FGG-SF12-F-4 | |
| FGG-SF12-F-5 | |||
| PHG-SF9-F-2 | PHG-SF10-F-2 | FGG-SF12-F-6 | |
| PHG-SF9-F-3 | PHG-SF10-F-3 | FGG-SF12-F-7 | |
| PHG-SF9-F-4 | PHG-SF10-F-4 | ||
| PHG-SF9-F-5 | PHG-SF10-F-5 | PHG-SF12-M-2 | |
| PHG-SF12-M-3 | |||
| PHG-SF12-M-4 | |||
| PHG-SF12-M-5 | |||
| PHG-SF12-M-6 | |||
| PHG-SF12-M-7 | |||
| PHG-SF12-F-2 | |||
| PHG-SF12-F-3 | |||
| PHG-SF12-F-4 | |||
| PHG-SF12-F-5 | |||
| PHG-SF12-F-6 | |||
| PHG-SF12-F-7 |
